SUPPORT PLATES REAR
Part Breakdown Image

Fig #

1

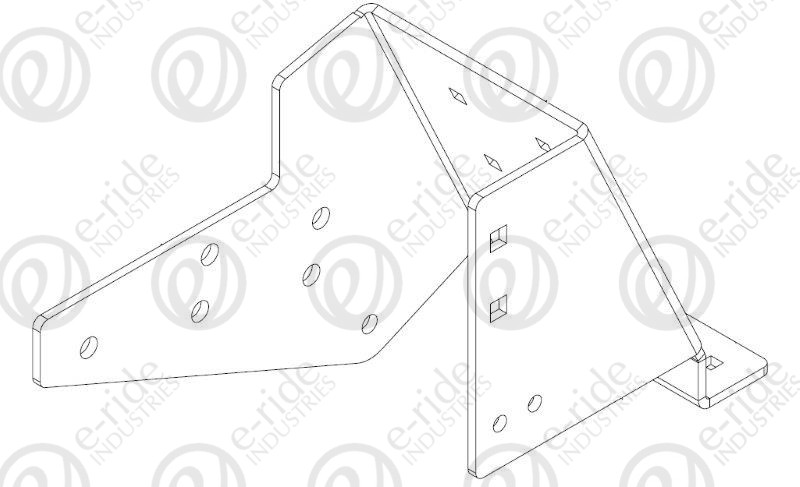

LEFT INSIDE TAIL SUPPORT

LEFT INSIDE TAIL SUPPORT

Part Number: U1168L-B

LEFT INSIDE TAIL SUPPORT

$  80.03

2

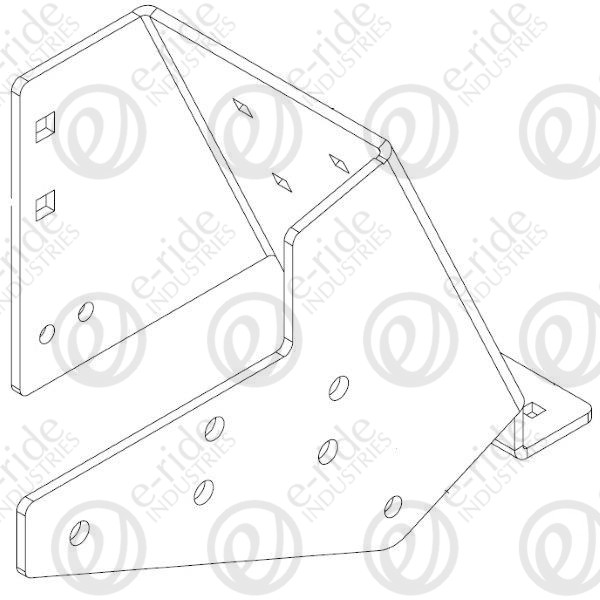

RIGHT INSIDE TAIL SUPPORT

RIGHT INSIDE TAIL SUPPORT

Part Number: U1168R-C

RIGHT INSIDE TAIL SUPPORT

$  80.03

3

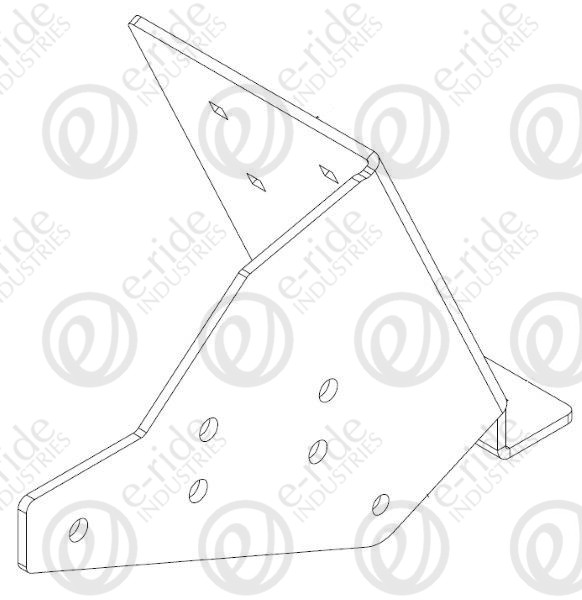

LEFT OUTSIDE TAIL SUPPORT

LEFT OUTSIDE TAIL SUPPORT

Part Number: U1169L-B

LEFT OUTSIDE TAIL SUPPORT

$  57.96

4

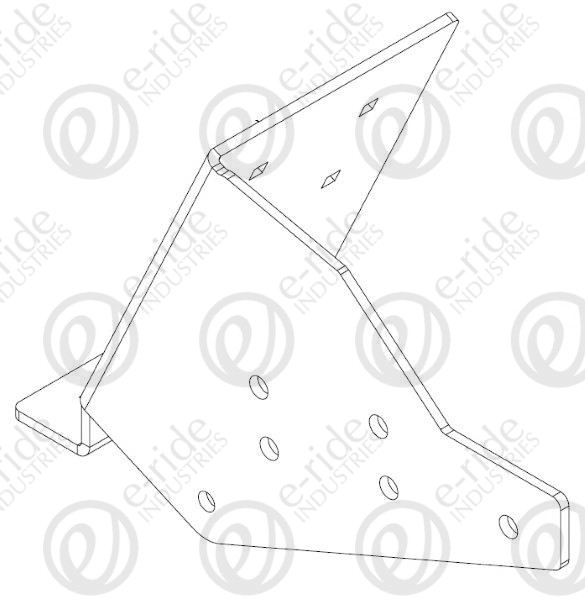

RIGHT OUTSIDE TAIL SUPPORT

RIGHT OUTSIDE TAIL SUPPORT

Part Number: U1169R-B

RIGHT OUTSIDE TAIL SUPPORT

$  57.96

5

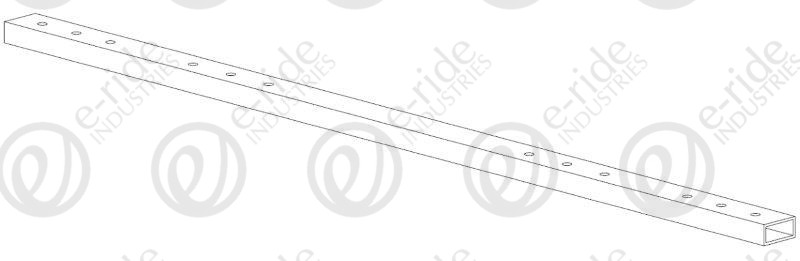

TAIL SUPPORT BAR

TAIL SUPPORT BAR

Part Number: U1170A-A

TAIL SUPPORT BAR

$  78.63

6L

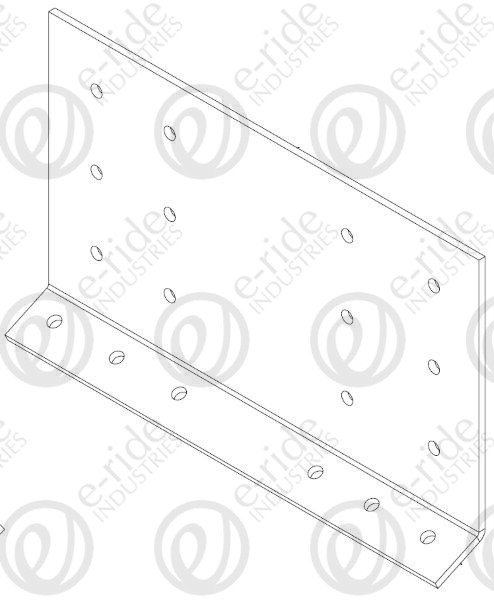

LEFT TAIL SUPP. TIE PLATE

LEFT TAIL SUPP. TIE PLATE

Part Number: U1172L-A

LEFT TAIL SUPPORT TIE PLATE

$  57.56

6R

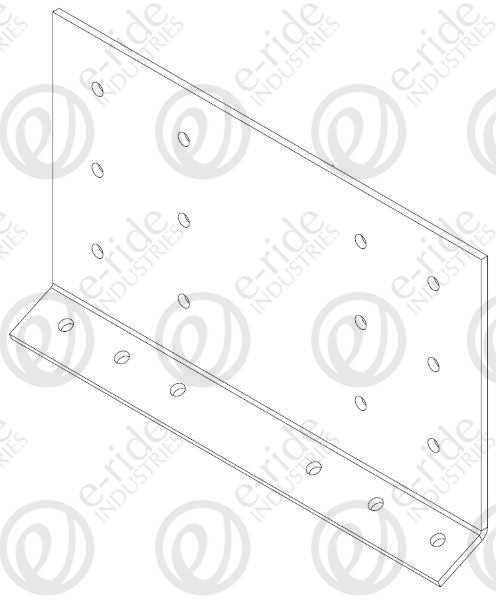

R TAIL SUPPORT TIE PLATE

R TAIL SUPPORT TIE PLATE

Part Number: U1172R-A

RIGHT TAIL SUPPORT TIE PLATE

$  57.56

8

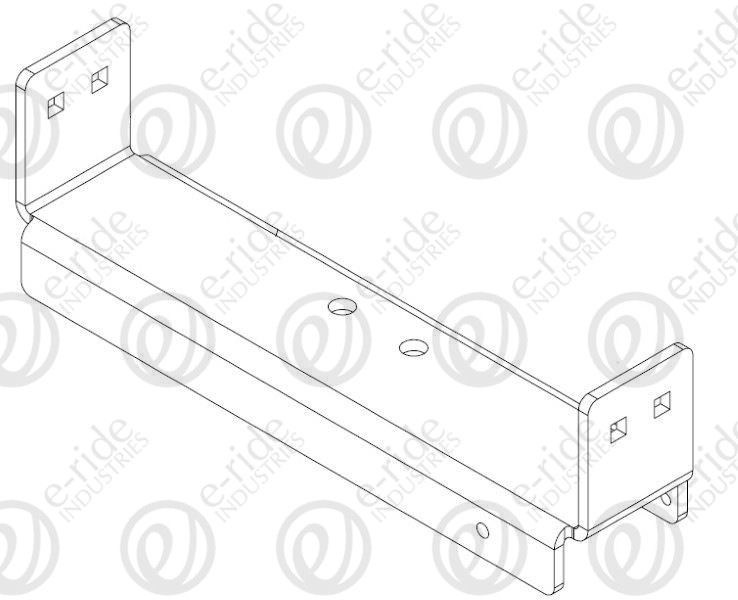

TAIL/REAR TUNNEL SUPPORT

TAIL/REAR TUNNEL SUPPORT

Part Number: U1174A-C

TAIL/REAR TUNNEL SUPPORT

$  40.85

9

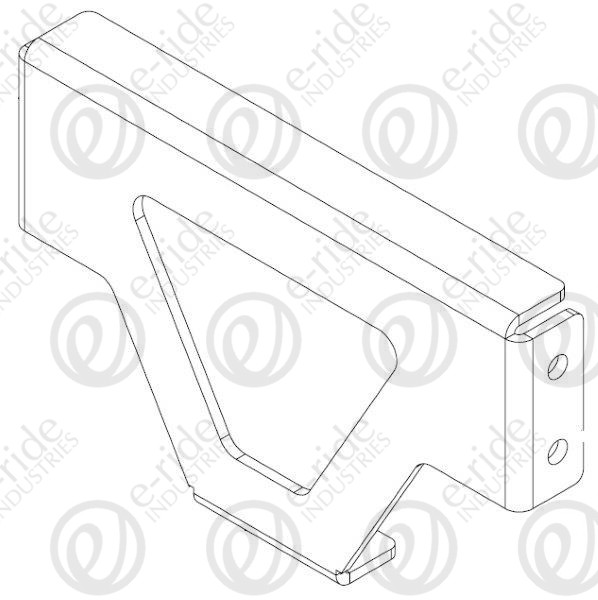

CENTER TAIL SUPPORT

CENTER TAIL SUPPORT

Part Number: U1173A-A

CENTER TAIL SUPPORT

$  44.62

10

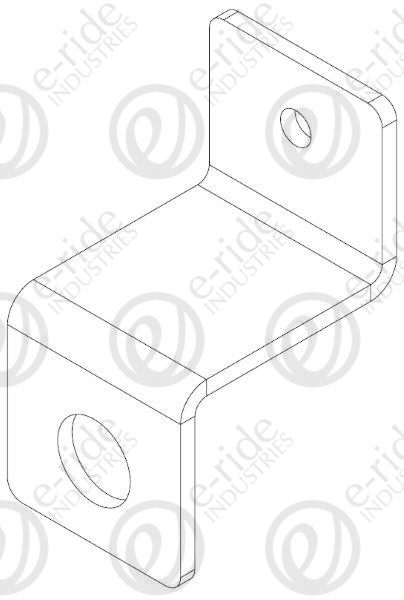

CHASSIS TEE HOSE MNT. BKT.

CHASSIS TEE HOSE MNT. BKT.

Part Number: U1152A-B

chassis tee hose mount Bracket

$  20.78

11
1/4in SAE WASHER

1/4in SAE WASHER

Part Number: U8589A-N

1/4in SAE WASHER

$  0.08

12
NUT

NUT

Part Number: U2842A-N

1/4-20 SERRATED FLANGE HEX NUT

$  0.24

13
SCREW

SCREW

Part Number: U8573A-N

1/4-20 X 3/4in HEX HEAD CAP SCREW

$  0.40

14

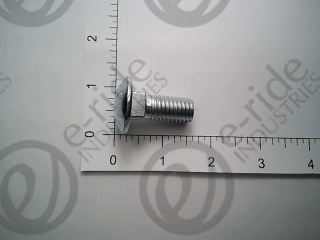

BOLT

BOLT

Part Number: U8682A-N

3/8-16 X 2 1/4in CARRIAGE BOLT

$  1.40

15
3/8-16 X 1in CARRIAGE BOLT

3/8-16 X 1in CARRIAGE BOLT

Part Number: U8609A-N

3/8-16 X 1in CARRIAGE BOLT

$  1.84

16
NUT

NUT

Part Number: U8506A-N

3/8-16 SERRATED FLANGE HEX NUT

$  0.40

17
SCREW

SCREW

Part Number: U8685A-N

1/2-13 X 3 1/4in HEX HEAD CAP SCREW

$  2.70

18
1/2in SAE WASHER

1/2in SAE WASHER

Part Number: U8586A-N

1/2in SAE WASHER

$  0.32

19
NUT

NUT

Part Number: U8504A-N

1/2-13 SERRATED FLANGE HEX NUT

$  1.20

20
1/2-13 X 1 1/4in CARRIAGE

1/2-13 X 1 1/4in CARRIAGE

Part Number: U8683A-N

1/2-13 X 1 1/4in CARRIAGE

$  1.76

21

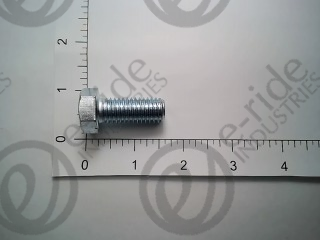

SCREW

SCREW

Part Number: U8684A-N

1/2-13 X 1 1/4in HEX HEAD CAP SCREW

$  1.44
