TUNNEL SUPPORTS
Part Breakdown Image

Fig #

6

Part Number: OBSOLETE


7

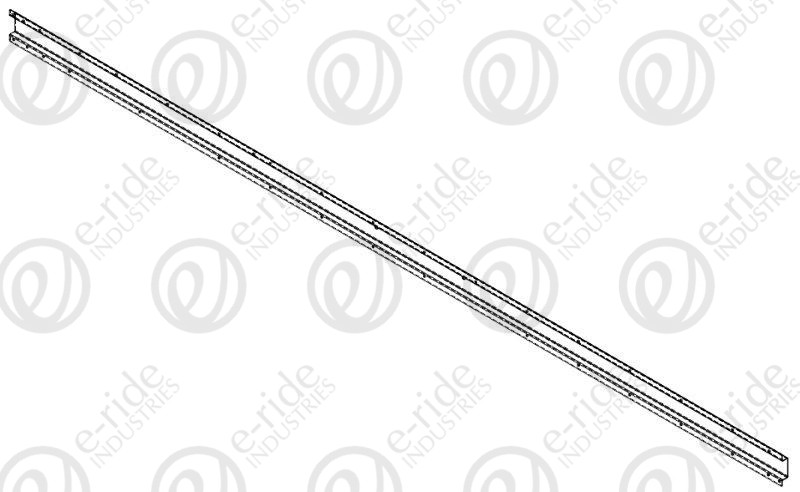

R BATT. TUNNEL SUPP. CHAN.

R BATT. TUNNEL SUPP. CHAN.

Part Number: U1016R-A

RIGHT BATTERY TUNNEL SUPPORT CHANNEL (BOTTOM)


8

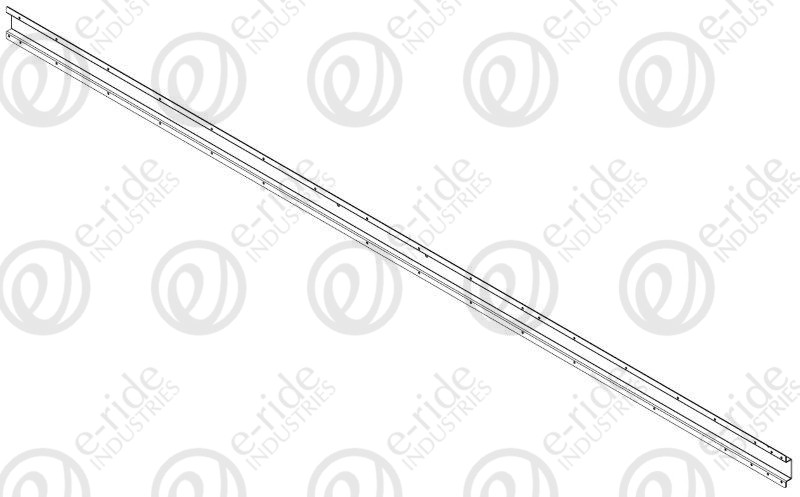

L BATT. TUNNEL SUPP. CHAN.

L BATT. TUNNEL SUPP. CHAN.

Part Number: U1016L-A

LEFT BATTERY TUNNEL SUPPORT CHANNEL (BOTTOM)


20
FRONT BATTERY STOP

FRONT BATTERY STOP

Part Number: U1113A-B

FRONT BATTERY STOP

$  20.21

21
REAR BRAKE CABLE BKT. PLATE

REAR BRAKE CABLE BKT. PLATE

Part Number: U1163A-OO

REAR BRAKE CABLE BRACKET PLATE


22

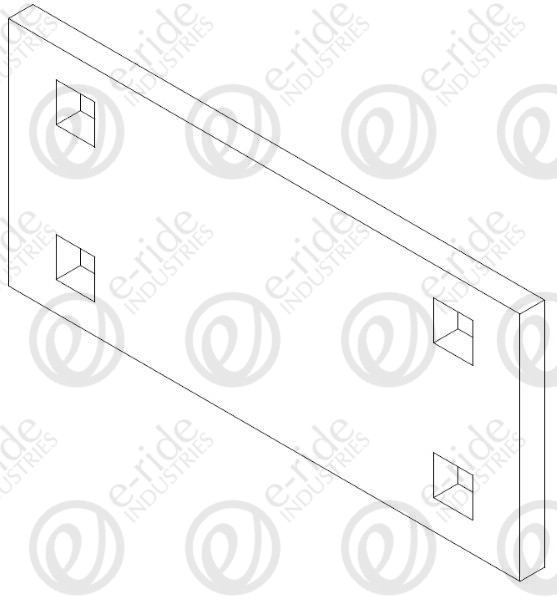

FRONT BRAKE CABLE PLATE

FRONT BRAKE CABLE PLATE

Part Number: U1164A-OO

FRONT BRAKE CABLE PLATE

$  9.91

33
3/8-16 X 1

3/8-16 X 1" CARRIAGE BOLT

Part Number: U8609A-N

3/8-16 X 1in CARRIAGE BOLT

$  0.62

50

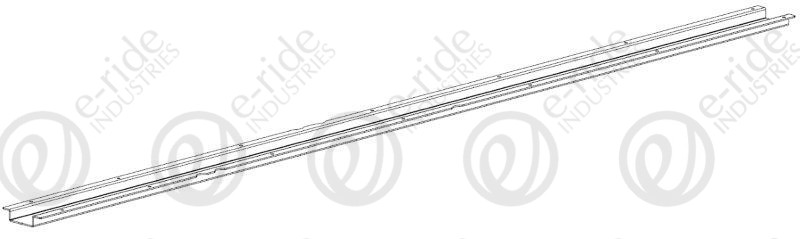

L BATTERY SUPPORT CHANNEL

L BATTERY SUPPORT CHANNEL

Part Number: U1022L-C

LEFT BATTERY SUPPORT CHANNEL


51
L BATTERY SUPPORT CHANNEL

L BATTERY SUPPORT CHANNEL

Part Number: U1022L-C

LEFT BATTERY SUPPORT CHANNEL


52

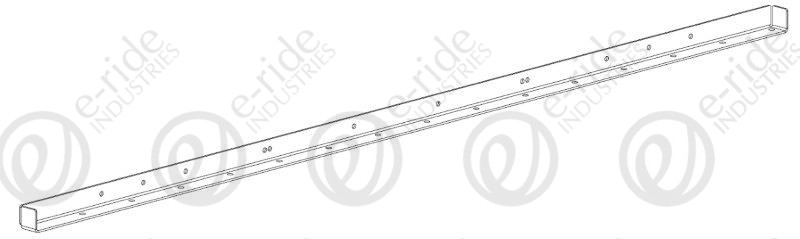

BATT. HOLD DOWN SYSTEM BKT.

BATT. HOLD DOWN SYSTEM BKT.

Part Number: U1203A-B

BATTERY HOLD DOWN SYSTEM BRACKET (REPLACED BY U1203A-C)

$  49.16
