BATTERY TUNNEL SUPPORTS

Hotspots

Fig #

1

BATT. TUNNEL ASSEMBLY

Part Number: U7500A-G

BATTERY TUNNEL AND CHANNEL ASSEMBLY

2

Part Number: OBSOLETE

3L

L BATT. TUNNEL SUPP. CHAN.

Part Number: U1016L-A

LEFT BATTERY TUNNEL SUPPORT CHANNEL (BOTTOM)

3R

R BATT. TUNNEL SUPP. CHAN.

Part Number: U1016R-A

RIGHT BATTERY TUNNEL SUPPORT CHANNEL (BOTTOM)

5

R BATTERY SUPPORT CHANNEL

Part Number: U1022R-C

RIGHT BATTERY SUPPORT CHANNEL

6

L BATTERY SUPPORT CHANNEL

Part Number: U1022L-C

LEFT BATTERY SUPPORT CHANNEL

7

BATT. HOLD DOWN SYSTEM BKT.

Part Number: U1203A-B

BATTERY HOLD DOWN SYSTEM BRACKET (REPLACED BY U1203A-C)

$ 49.16

8

FRONT BATTERY STOP

Part Number: U1113A-B

FRONT BATTERY STOP

$ 20.21

9

PARK BRAKE CABLE BRACKET

Part Number: U1258A-OO

PARK BRAKE CABLE BRACKET

$ 18.34

10

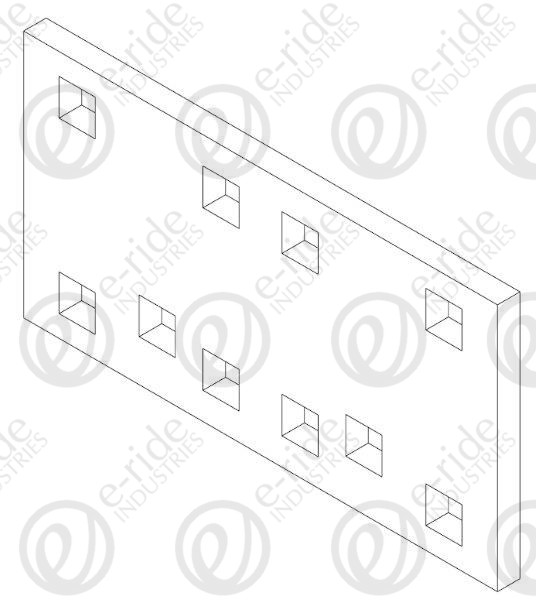

CENTER BRAKE CABLE PLATE

Part Number: U1259A-A

CENTER BRAKE CABLE PLATE

$ 11.06

11

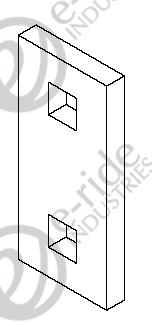

OUTSIDE BRAKE CABLE PLATE

Part Number: U1260A-OO

OUTSIDE BRAKE CABLE PLATE

$ 5.06

12

3/8-16 X 1" CARRIAGE BOLT

Part Number: U8609A-N

3/8-16 X 1in CARRIAGE BOLT

$ 0.62

13

NUT

Part Number: U8506A-N

3/8-16 SERRATED FLANGE HEX NUT

$ 0.13

14

RIGHT FLOOR PAN

Part Number: U1002R-G

RIGHT FLOOR PAN

$ 177.68

15

0

Part Number: U1003L-I

(REPLACED BY U1003L-J) INSIDE TAIL LEFT

16

EXV2 FRONT BUMPER MOUNT

Part Number: F1535A-OO

EXV2 FRONT BUMPER MOUNT

$ 170.12

17

WIDTH SUPPORT CHANNEL

Part Number: U1021A-E

WIDTH SUPPORT CHANNEL

$ 34.32
