Popular Parts
FRONT PARKING BRAKE CABLE
FRONT PARKING BRAKE CABLE

$ 55.46

REAR PARKING BRAKE CABLE
REAR PARKING BRAKE CABLE

$ 40.32

PARKING BRAKE CABLES
Part Breakdown Image

Fig #

15

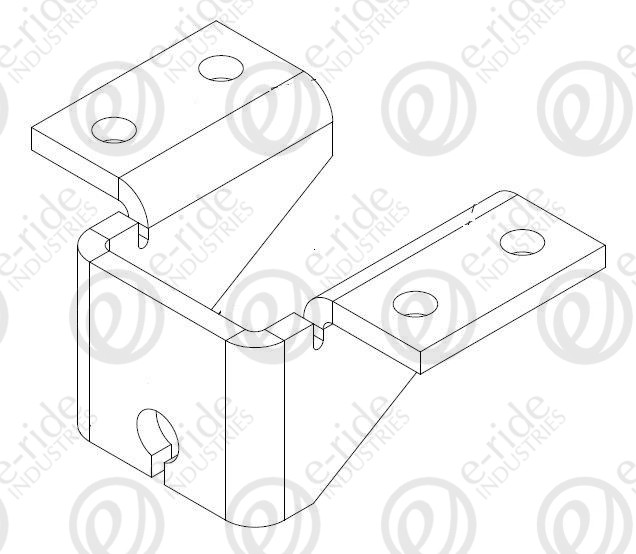

FRONT BRAKE CABLE BRACKET

FRONT BRAKE CABLE BRACKET

Part Number: U1082A-A

FRONT BRAKE CABLE BRACKET


16

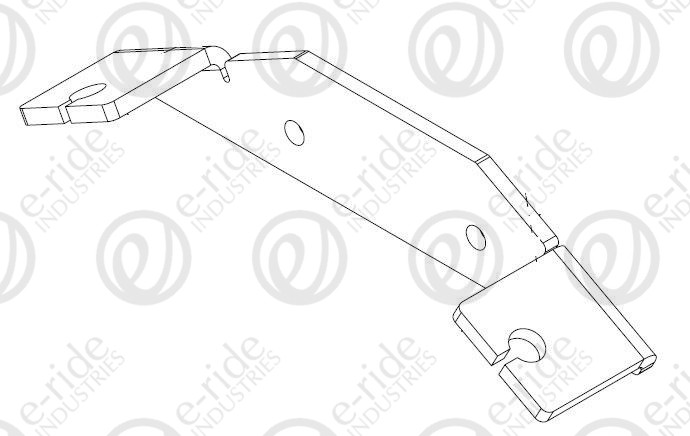

REAR BRAKE CABLE BRACKET

REAR BRAKE CABLE BRACKET

Part Number: U1097A-D

REAR BRAKE CABLE BRACKET

$  42.60

23

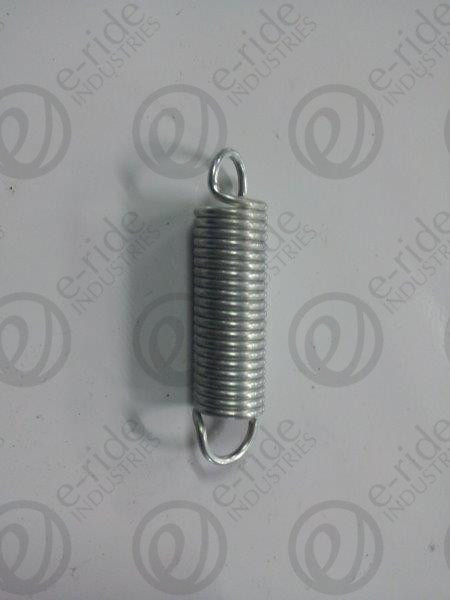

RETURN SPRING FOR BRAKE ROD

RETURN SPRING FOR BRAKE ROD

Part Number: U3420A-N

RETURN SPRING FOR BRAKE ROD

$  8.33

24
EQUALIZER

EQUALIZER

Part Number: U4402A-N

EQUALIZER AND PIVOT LIMITER KIT

$  23.74

25
PARKING BRAKE ROD

PARKING BRAKE ROD

Part Number: U4420A-C

PARKING BRAKE ROD

$  17.18

28

Part Number: OBSOLETE


30
BOLT

BOLT

Part Number: U8505A-N

5/16-18 X 2 1/8in SHANK FULL THREAD EYE BOLT

$  3.06

32
5/16in SAE WASHER

5/16in SAE WASHER

Part Number: U8585A-N

5/16in SAE WASHER

$  0.08

33
3/8-16 X 1in CARRIAGE BOLT

3/8-16 X 1in CARRIAGE BOLT

Part Number: U8609A-N

3/8-16 X 1in CARRIAGE BOLT

$  1.84

34
3/8in SAE WASHER

3/8in SAE WASHER

Part Number: U8590A-N

3/8in SAE WASHER

$  0.16

35
3/8in SPLIT LOCK WASHER

3/8in SPLIT LOCK WASHER

Part Number: U8588A-N

3/8in SPLIT LOCK WASHER

$  0.24

37
3/8-16 HEX NUT

3/8-16 HEX NUT

Part Number: U8587A-N

3/8-16 HEX NUT

$  0.32

38
5/16in SPLIT LOCK WASHER

5/16in SPLIT LOCK WASHER

Part Number: U8583A-N

5/16in SPLIT LOCK WASHER

$  0.32

39
5/16-18 HEX NUT

5/16-18 HEX NUT

Part Number: U8581A-N

5/16-18 HEX NUT

$  0.24

40
5/16in X 3/4in CLEVIS PIN

5/16in X 3/4in CLEVIS PIN

Part Number: U8543A-N

5/16in X 3/4in CLEVIS PIN

$  1.52

41
3/16in BRIDGE PIN

3/16in BRIDGE PIN

Part Number: U8551A-N

3/16in BRIDGE PIN

$  1.04

49
BUSHINGS

BUSHINGS

Part Number: U8400A-N

BUSHINGS (Qty. 2 required per hole)

$  3.53

84
RETAINING RING BRAKE CABLE

RETAINING RING BRAKE CABLE

Part Number: U8201A-N

RETAINING RING BRAKE CABLE E-50

$  0.80

90
5/16-24 HEX NUT FINE THREAD

5/16-24 HEX NUT FINE THREAD

Part Number: U8608A-N

5/16-24 HEX NUT FINE THREAD

$  0.24

91

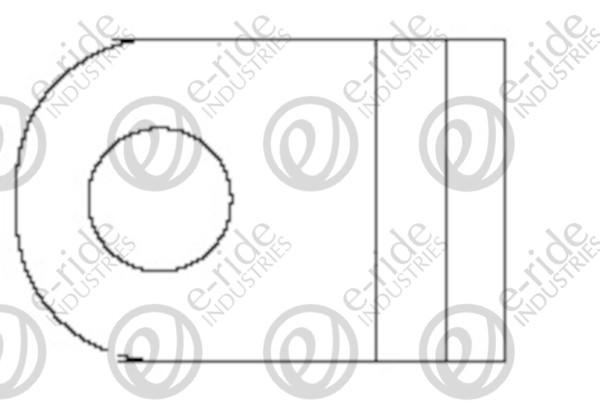

PARK BRAKE SPRING CLIP

PARK BRAKE SPRING CLIP

Part Number: U1204A-OO

PARK BRAKE SPRING CLIP

$  3.73

92
REAR PARKING BRAKE CABLE

REAR PARKING BRAKE CABLE

Part Number: U4401A-N

REAR PARKING BRAKE CABLE

$  40.32

93
FRONT PARKING BRAKE CABLE

FRONT PARKING BRAKE CABLE

Part Number: U4400A-N

FRONT PARKING BRAKE CABLE (OVERCENTER LEVER)

$  55.46
