NOTICE: THIS PARTS BREAKDOWN IS FOR VEHICLES CONVERTED TO THE DUAL PISTON FRONT BRAKE CALIPERS.

Popular Parts
F BRAKE CALIPER BODY ONLY
F BRAKE CALIPER BODY ONLY

$ 117.14

FRONT ORGANIC BRAKE PAD
FRONT ORGANIC BRAKE PAD

$ 18.54

FRONT CALIPER SLIDE PIN
FRONT CALIPER SLIDE PIN

$ 4.43

FRONT CALIPER SNAP RING
FRONT CALIPER SNAP RING

$ 0.30

BRAKE ROTOR
BRAKE ROTOR

$ 55.30

BRAKES FRONT
Part Breakdown Image

Fig #

1
BRAKE ROTOR

BRAKE ROTOR

Part Number: U4131A-B

BRAKE ROTOR (5 1/2 DIA. HUB)

$  55.30

2L
CALIPER OFFSET MNT. L

CALIPER OFFSET MNT. L

Part Number: U1281L-OO-BLK

ADRENALINE CALIPER OFFSET MOUNT LEFT (U7100L SPINDLE)

$  21.74

2R
CALIPER OFFSET MNT. R

CALIPER OFFSET MNT. R

Part Number: U1281R-OO-BLK

ADRENALINE CALIPER OFFSET MOUNT RIGHT (U7100R SPINDLE)

$  21.74

3
3/8

3/8" SAE WASHER

Part Number: U8590A-N

3/8in SAE WASHER

$  0.05

4
3/8

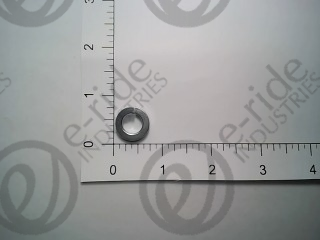

3/8" SPLIT LOCK WASHER

Part Number: U8588A-N

3/8in SPLIT LOCK WASHER

$  0.08

5

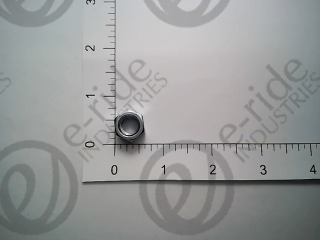

3/8-16 HEX NUT

3/8-16 HEX NUT

Part Number: U8587A-N

3/8-16 HEX NUT

$  0.10

6
SCREW

SCREW

Part Number: U8580A-N

3/8-16 X 1 1/4in HEX CAP SCREW

$  0.40

8
FRONT CALIPER BRAKE HOSE

FRONT CALIPER BRAKE HOSE

Part Number: U4451A-OO

FRONT CALIPER BRAKE HOSE

$  24.06

9
CLIPS FOR BRAKE HOSE

CLIPS FOR BRAKE HOSE

Part Number: U8642A-N

CLIPS FOR BRAKE HOSE

$  1.38

10
F BRAKE CALIPER BODY ONLY

F BRAKE CALIPER BODY ONLY

Part Number: U4102A-1N

FRONT BRAKE CALIPER BODY ONLY

$  117.14

11
FRONT ORGANIC BRAKE PAD

FRONT ORGANIC BRAKE PAD

Part Number: U4102A-2N

FRONT ORGANIC BRAKE PAD (Qty. 4 Required Per Vehicle)

$  18.54

12-1
FRONT CALIPER SLIDE PIN

FRONT CALIPER SLIDE PIN

Part Number: U4102A-3N

FRONT CALIPER SLIDE PIN (Qty. 2 Required Per Caliper)

$  4.43

12-2
FRONT CALIPER SNAP RING

FRONT CALIPER SNAP RING

Part Number: U4102A-4N

FRONT CALIPER SNAP RING (Qty. 2 Required Per Caliper)

$  0.30

13
COPPER CRUSH WASHER

COPPER CRUSH WASHER

Part Number: U4415A-N

COPPER CRUSH WASHER

$  0.28

14
BOLT

BOLT

Part Number: U4414A-N

775-101S 10MM X 1.0 BANJO BOLT

$  1.87

15
15 WHITE WHEEL AND TIRE

15 WHITE WHEEL AND TIRE

Part Number: U4603A-B

15 WHITE WHEEL AND TIRE MOUNTED AND BALANCED

$  309.38

16

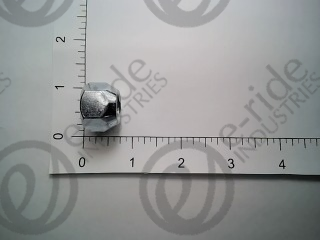

REGULAR LUG NUT (1/2-20)

REGULAR LUG NUT (1/2-20)

Part Number: U8629A-OO

REGULAR LUG NUT (1/2-20)

$  0.64

17
CHROME COVER

CHROME COVER

Part Number: U4604A-OO

CHROME LUG NUT/HUB WHEEL COVER

$  21.40
