If front calipers have been replaced with dual piston version see this diagram for brake parts.

Popular Parts
F BRAKE PAD
F BRAKE PAD

$ 28.55

F BRAKE PAD
F BRAKE PAD

$ 36.80

BRAKE ROTOR
BRAKE ROTOR

$ 55.30

BRAKES FRONT
Part Breakdown Image

Fig #

6L
LEFT STEERING KNUCKLE

LEFT STEERING KNUCKLE

Part Number: U7100L-C

LEFT STEERING KNUCKLE

$  125.02

6R
RIGHT STEERING KNUCKLE

RIGHT STEERING KNUCKLE

Part Number: U7100R-C

RIGHT STEERING KNUCKLE

$  109.53

12L

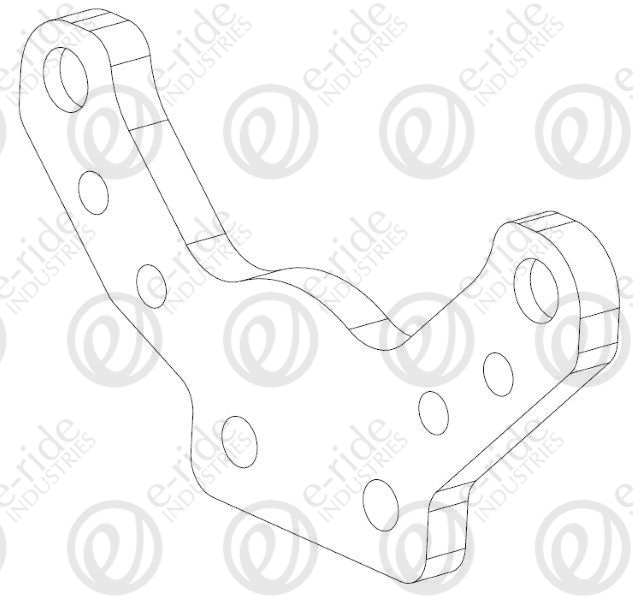

LEFT FROGGER CALIPER MOUNT

LEFT FROGGER CALIPER MOUNT

Part Number: U1138L-A

LEFT FROGGER CALIPER MOUNT

$  14.97

12R

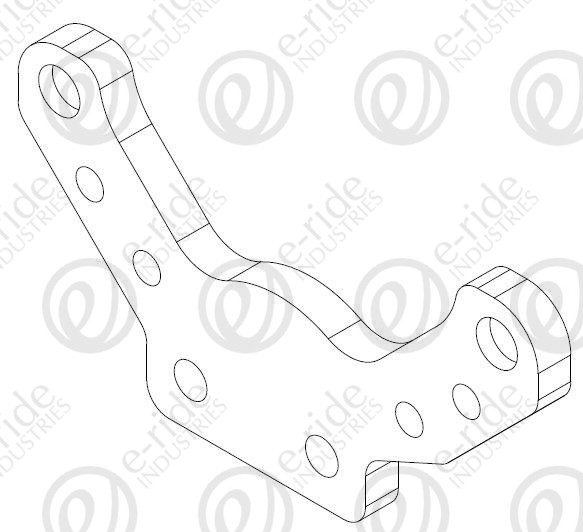

RIGHT FROGGER CALIPER MNT.

RIGHT FROGGER CALIPER MNT.

Part Number: U1138R-A

RIGHT FROGGER CALIPER MOUNT

$  14.97

13-1

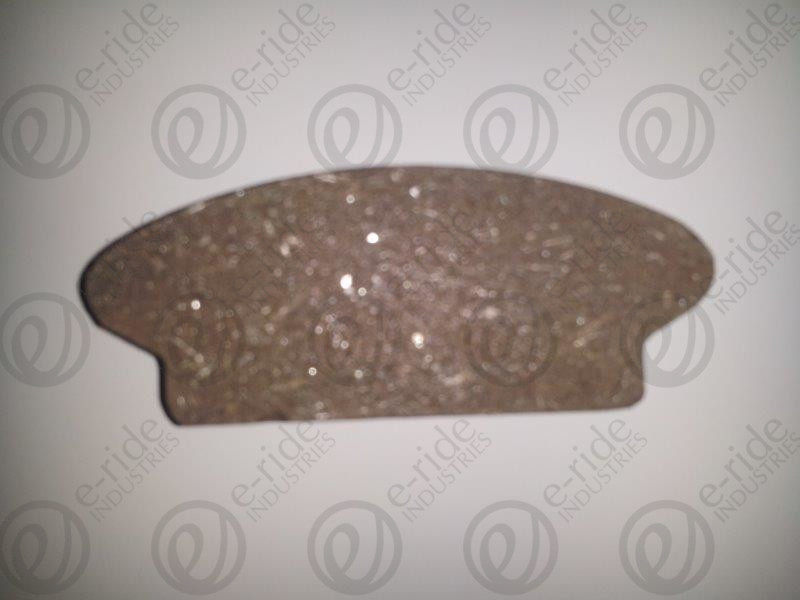

F BRAKE PAD

F BRAKE PAD

Part Number: U4100A-3A

FRONT BRAKE ORGANIC MATERIAL PAD (INNER PAD) (PISTON SIDE)

$  28.55

13-2

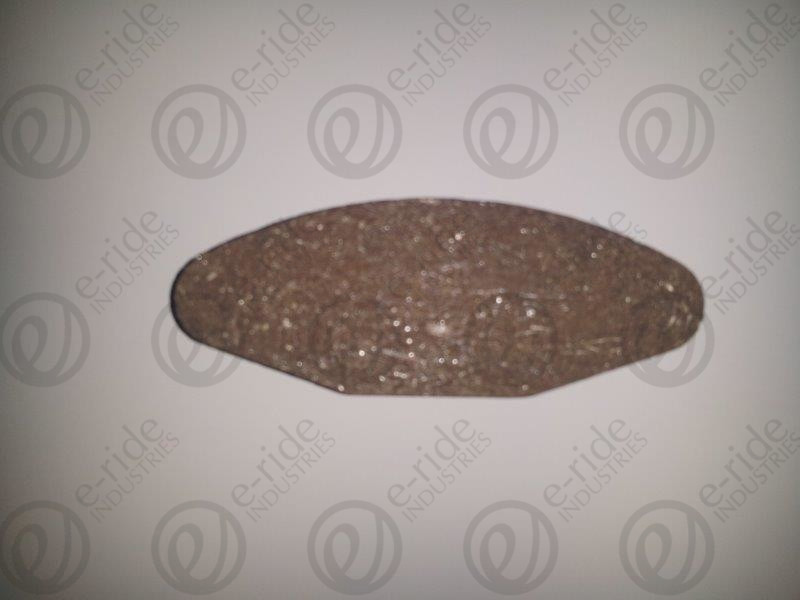

F BRAKE PAD

F BRAKE PAD

Part Number: U4100A-4A

FRONT BRAKE ORGANIC MATERIAL PAD (OUTER PAD) (CARRIER SIDE)

$  36.80

13-3
BRAKE CALIPER CONVERSION KIT

BRAKE CALIPER CONVERSION KIT

Part Number: KIT-15

FRONT BRAKE DUAL CALIPER CONVERSION KIT (LIST OF ITEMS WILL AUTO FILL IN CART)(SEE PRICE IN CART)

See Price In Cart

22
3/8

3/8" SAE WASHER

Part Number: U8590A-N

3/8in SAE WASHER

$  0.05

23
SCREW

SCREW

Part Number: U8580A-N

3/8-16 X 1 1/4in HEX CAP SCREW

$  0.40

27
3/8

3/8" SPLIT LOCK WASHER

Part Number: U8588A-N

3/8in SPLIT LOCK WASHER

$  0.08

28
3/8-16 HEX NUT

3/8-16 HEX NUT

Part Number: U8587A-N

3/8-16 HEX NUT

$  0.10

32
M8 SPLIT LOCK WASHER

M8 SPLIT LOCK WASHER

Part Number: U8567A-N

M8 SPLIT LOCK WASHER

$  0.21

33
M8 - 1.25 X 25 HEX HEAD

M8 - 1.25 X 25 HEX HEAD

Part Number: U8562A-N

M8 - 1.25 X 25 HEX HEAD

$  0.40

48
FRONT CALIPER BRAKE HOSE

FRONT CALIPER BRAKE HOSE

Part Number: U4418A-OO

FRONT CALIPER BRAKE HOSE

$  19.94

49
WASHER

WASHER

Part Number: U8622A-N

FRONT HUB WASHER 1in ID 1.75in OD 0.100in THK

$  1.86

52

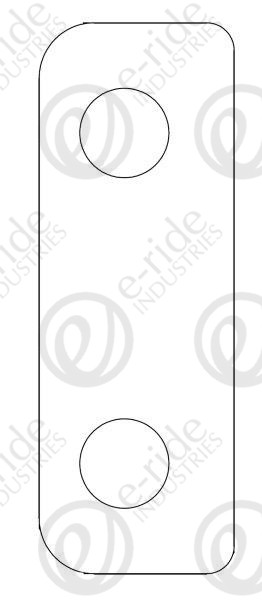

CALIPER MOUNT SHIM

CALIPER MOUNT SHIM

Part Number: U1223A-OO

CALIPER MOUNT SHIM


53
BRAKE ROTOR

BRAKE ROTOR

Part Number: U4131A-B

BRAKE ROTOR (5 1/2 DIA. HUB)

$  55.30

54

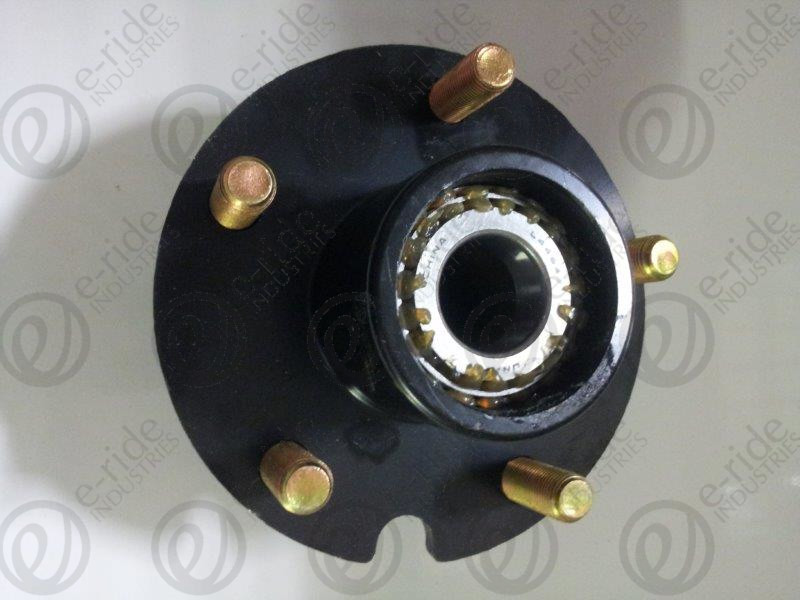

5 1/2 DIA. HUB KIT

5 1/2 DIA. HUB KIT

Part Number: U4221A-N

5 1/2 DIA. HUB KIT

$  88.96

55
FRONT HUB DUST COVER

FRONT HUB DUST COVER

Part Number: U4222A-N

FRONT HUB DUST COVER

$  3.22

56
F SPINDLE COTTER PIN

F SPINDLE COTTER PIN

Part Number: U8633A-N

FRONT SPINDLE COTTER PIN 1/8in 2.25in OVERALL 1.75in USEABLE

$  0.22

65
1

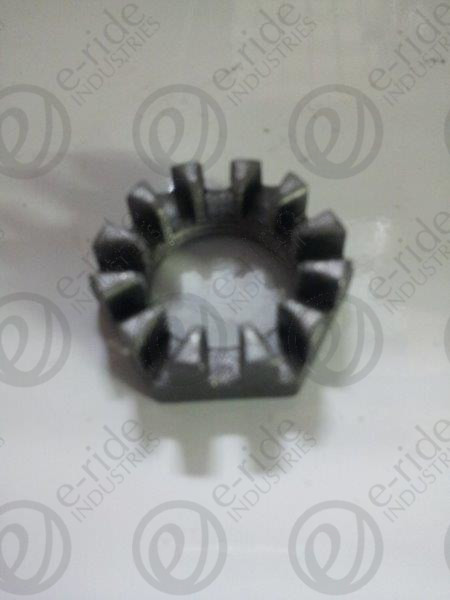

1"-14 12 SLOTTED NUT PLAIN

Part Number: U8670A-N

1in-14 12 SLOTTED NUT PLAIN

$  2.37
