If front calipers have been replaced with dual piston version see this diagram for brake parts.

Popular Parts
F BRAKE PAD
F BRAKE PAD

$ 28.15

F BRAKE PAD
F BRAKE PAD

$ 36.27

BRAKE ROTOR
BRAKE ROTOR

$ 55.30

BRAKES FRONT
Part Breakdown Image

Fig #

11

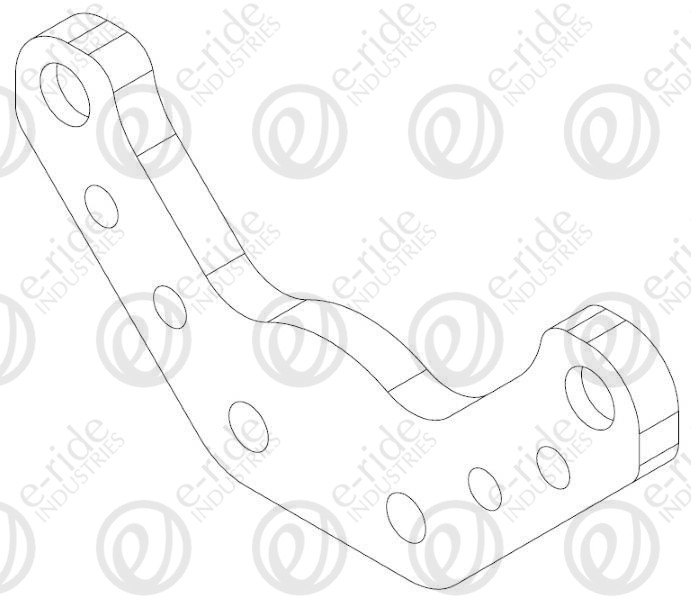

FROGGER CALIPER MOUNT

FROGGER CALIPER MOUNT

Part Number: U1138A-OO

FROGGER CALIPER MOUNT

$  19.11

12-1
F BRAKE PAD

F BRAKE PAD

Part Number: U4100A-3A

FRONT BRAKE ORGANIC MATERIAL PAD (INNER PAD) (PISTON SIDE)

$  28.15

12-2
F BRAKE PAD

F BRAKE PAD

Part Number: U4100A-4A

FRONT BRAKE ORGANIC MATERIAL PAD (OUTER PAD) (CARRIER SIDE)

$  36.27

12-3
DUAL PISTON CALIPER KIT

DUAL PISTON CALIPER KIT

Part Number: KIT-14

Dual piston caliper conversion kit(U7104 spindles)(LIST OF ITEMS WILL AUTO FILL IN CART)

$ 468.68

20
3/8in SAE WASHER

3/8in SAE WASHER

Part Number: U8590A-N

3/8in SAE WASHER

$  0.16

21
SCREW

SCREW

Part Number: U8580A-N

3/8-16 X 1 1/4in HEX CAP SCREW

$  1.12

25
3/8in SPLIT LOCK WASHER

3/8in SPLIT LOCK WASHER

Part Number: U8588A-N

3/8in SPLIT LOCK WASHER

$  0.24

29
M8 SPLIT LOCK WASHER

M8 SPLIT LOCK WASHER

Part Number: U8567A-N

M8 SPLIT LOCK WASHER

$  0.64

30
M8 - 1.25 X 25 HEX HEAD

M8 - 1.25 X 25 HEX HEAD

Part Number: U8562A-N

M8 - 1.25 X 25 HEX HEAD

$  1.20

40
FRONT CALIPER BRAKE HOSE

FRONT CALIPER BRAKE HOSE

Part Number: U4418A-OO

FRONT CALIPER BRAKE HOSE

$  24.14

41
WASHER

WASHER

Part Number: U8622A-N

FRONT HUB WASHER 1in ID 1.75in OD 0.100in THK

$  2.67

43
BRAKE ROTOR

BRAKE ROTOR

Part Number: U4131A-B

BRAKE ROTOR (5 1/2 DIA. HUB)

$  55.30

44
5 1/2 DIA. HUB KIT

5 1/2 DIA. HUB KIT

Part Number: U4221A-N

5 1/2 DIA. HUB KIT

$  71.82

54
1in-14 12 SLOTTED NUT PLAIN

1in-14 12 SLOTTED NUT PLAIN

Part Number: U8670A-N

1in-14 12 SLOTTED NUT PLAIN

$  3.36

56
NUT

NUT

Part Number: U8506A-N

3/8-16 SERRATED FLANGE HEX NUT

$  0.40

57
FRONT HUB DUST COVER

FRONT HUB DUST COVER

Part Number: U4222A-N

FRONT HUB DUST COVER

$  5.89
