BRAKES REAR
Part Breakdown Image

Fig #

1
REAR AXLE ASSEMBLY

REAR AXLE ASSEMBLY

Part Number: U4204A-B

REAR AXLE ASSEMBLY NOTE:AXLE IS SHIPPED DISASSEMBLED. PICTURE REPRESENTS WHAT IS LOOKS LIKE ASSEMBLED HERE ARE THE OIL SPECIFICATIONS.

$  974.72

2L
L PARKING BRAKE ASSEMBLY

L PARKING BRAKE ASSEMBLY

Part Number: U4134L-N

LEFT MECHANICAL 7 PARKING BRAKE ASSEMBLY

$  159.58

2R
R PARKING BRAKE ASSEMBLY

R PARKING BRAKE ASSEMBLY

Part Number: U4134R-N

RIGHT MECHANICAL 7 PARKING BRAKE ASSEMBLY

$  159.58

2-1
PARKING BRAKE SHOE SET

PARKING BRAKE SHOE SET

Part Number: U4204A-9N

PARKING BRAKE SHOE SET

$  102.20

2-2
PARK BRAKE LEVER ASSEMBLY

PARK BRAKE LEVER ASSEMBLY

Part Number: U4134A-1N

PARK BRAKE ACTUATION LEVER ASSEMBLY

$  55.68

2-3
PARK BRAKE LEVER CLIP

PARK BRAKE LEVER CLIP

Part Number: U4134A-2N

PARK BRAKE ACTUATION LEVER SPRING CLIP

$  4.10

4L
LEFT PARK BRAKE EXTENSION

LEFT PARK BRAKE EXTENSION

Part Number: U1266L-B-BLK

LEFT PARK BRAKE EXTENSION

$  19.71

4R
RIGHT PARK BRAKE EXTENSION

RIGHT PARK BRAKE EXTENSION

Part Number: U1266R-B-BLK

RIGHT PARK BRAKE EXTENSION

$  20.01

6
5/16in SAE WASHER

5/16in SAE WASHER

Part Number: U8585A-N

5/16in SAE WASHER

$  0.08

7
5/16in SPLIT LOCK WASHER

5/16in SPLIT LOCK WASHER

Part Number: U8583A-N

5/16in SPLIT LOCK WASHER

$  0.32

8

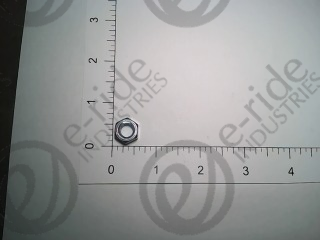

5/16-18 HEX NUT

5/16-18 HEX NUT

Part Number: U8581A-N

5/16-18 HEX NUT

$  0.24

9

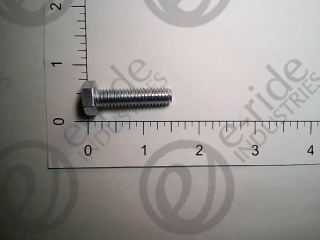

SCREW

SCREW

Part Number: U8563A-N

5/16-18 X 1 1/4in HEX HEAD CAP SCREW

$  0.56

10
WHEEL HUB ASSEMBLY

WHEEL HUB ASSEMBLY

Part Number: U4204A-4N

WHEEL HUB ASSEMBLY


11
WASHER LOCKING 17 X 30

WASHER LOCKING 17 X 30

Part Number: U4204A-45N

WASHER LOCKING 17 X 30

$  12.65

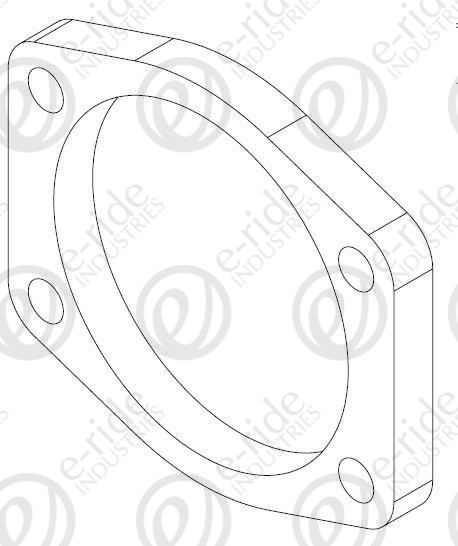

12
DRUM BRAKE SPACER BRACKET

DRUM BRAKE SPACER BRACKET

Part Number: U1267A-OO-BLK

DRUM BRAKE SPACER BRACKET

$  7.36

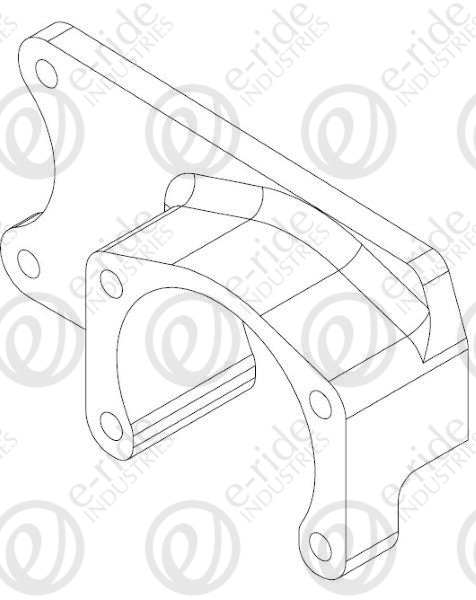

14L
AXLE DISC BRAKE MNT. BKT.

AXLE DISC BRAKE MNT. BKT.

Part Number: U1268L-OO

AXLE DISC BRAKE MOUNT BRACKET (LEFT)

$  75.90

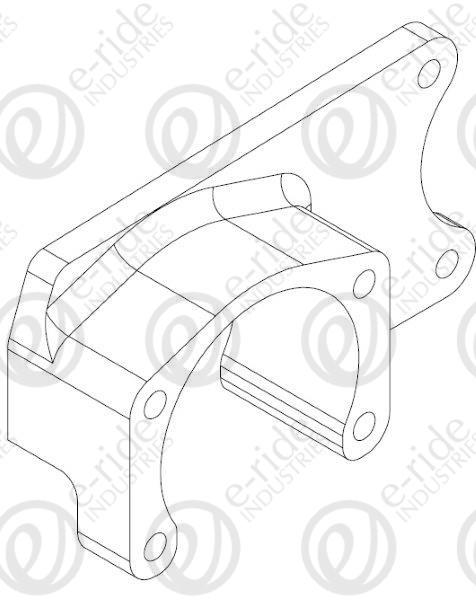

14R
AXLE DISC BRAKE MNT. BKT.

AXLE DISC BRAKE MNT. BKT.

Part Number: U1268R-OO

AXLE DISC BRAKE MOUNT BRACKET (RIGHT)

$  75.90

16
SCREW

SCREW

Part Number: U8520A-N

5/16-18 X 3 1/2in GRADE 8 HEX HEAD CAP SCREW

$  1.44

17
SCREW

SCREW

Part Number: U8521A-N

5/16-18 X 2 1/2in GRADE 8 HEX HEAD CAP SCREW


15
5/16-18 GRADE 8 HEX NUT

5/16-18 GRADE 8 HEX NUT

Part Number: U8571A-N

5/16-18 GRADE 8 HEX NUT

$  0.40

18
NUT HEX FLANGE 5/8 - 18 UNF

NUT HEX FLANGE 5/8 - 18 UNF

Part Number: U4204A-33N

NUT HEX FLANGE 5/8 - 18 UNF

$  5.39

19
WASHER LOCKING 17 X 30

WASHER LOCKING 17 X 30

Part Number: U4204A-45N

WASHER LOCKING 17 X 30

$  12.65

20L
LEFT REAR BRAKE CALIPER

LEFT REAR BRAKE CALIPER

Part Number: U4101L-N

LEFT REAR BRAKE CALIPER (Equipped With Brake Pads)

$  104.35

20R
RIGHT REAR BRAKE CALIPER

RIGHT REAR BRAKE CALIPER

Part Number: U4101R-N

RIGHT REAR BRAKE CALIPER (Equipped With Brake Pads)

$  104.35

20-1
REAR BRAKE PADS

REAR BRAKE PADS

Part Number: U4101A-1N

REAR BRAKE PADS (ONE CALIPER SET)(2 PADS)(Qty.2 Required Per Vehicle)

$  27.31

22
M8 SPLIT LOCK WASHER

M8 SPLIT LOCK WASHER

Part Number: U8567A-N

M8 SPLIT LOCK WASHER

$  0.64

23
M8 - 1.25 X 25 HEX HEAD

M8 - 1.25 X 25 HEX HEAD

Part Number: U8562A-N

M8 - 1.25 X 25 HEX HEAD

$  1.20

24
REAR BRAKE ROTOR CAST IRON

REAR BRAKE ROTOR CAST IRON

Part Number: U4135A-OO

REAR BRAKE ROTOR CAST IRON

$  112.31

25
5/16in X 3/4in CLEVIS PIN

5/16in X 3/4in CLEVIS PIN

Part Number: U8543A-N

5/16in X 3/4in CLEVIS PIN

$  1.52

26
1/8 X 3/4 COTTER PIN

1/8 X 3/4 COTTER PIN

Part Number: U8538A-N

1/8 X 3/4 COTTER PIN

$  0.32
