BATTERY LITHIUM 110AH
Part Breakdown Image

Fig #

1
BUS BAR

BUS BAR

Part Number: U5582A-N

Bus Bar Short

$  3.71

2
BUS BAR

BUS BAR

Part Number: U5581A-N

Bus Bar Long

$  3.71

3
LITHIUM CELL

LITHIUM CELL

Part Number: U5580A-N

CALB Lithium Cell 110AH qty. 24 required per vehicle

$  139.22

5
LITHIUM WARMER

LITHIUM WARMER

Part Number: U5788A-OO

Lithium dual element warmer 8.5x27.5in (72V 200W)(240V 820W)

$  387.50

6
BATTERY HOLD DOWN

BATTERY HOLD DOWN

Part Number: U4520A-N

BATTERY HOLD DOWN

$  8.25

7
J-BOLT

J-BOLT

Part Number: U8607A-N

J-BOLT

$  5.50

8
TUNNEL BLOCK OUT PANEL

TUNNEL BLOCK OUT PANEL

Part Number: U1117A-OO

Tunnel Block Out Panel Lithium

$  19.50

9
1 3/8 RUBBER GROMMET

1 3/8 RUBBER GROMMET

Part Number: U6407A-N

1 3/8 RUBBER GROMMET (TUNNEL COVER)

$  3.68

10
SWITCH

SWITCH

Part Number: U5898A-N

MAIN BATTERY DISCONNECT SWITCH

$  242.28

11
BATTERY CABLE

BATTERY CABLE

Part Number: U5008A-OO

1/o Pos to Contactor/fuse - 94in with 1/4in Ring

$  110.41

12
BATTERY WARMER INSULATION

BATTERY WARMER INSULATION

Part Number: U5011A-N

8.5in x 27.5in x 1/2in Battery Warmer Insulation

$  11.84

13
BATTERY HOLD DOWN STOP

BATTERY HOLD DOWN STOP

Part Number: U4522A-OO

Battery Hold Down Stop


14
INSULATION

INSULATION

Part Number: U8215A-N

BATTERY TUNNEL INSULATION LITHIUM BLOCK OUT PLATE (14inX17in)

$  4.88

15
RUBBER MAT

RUBBER MAT

Part Number: U5014A-N

Rubber mat top of lithium cells

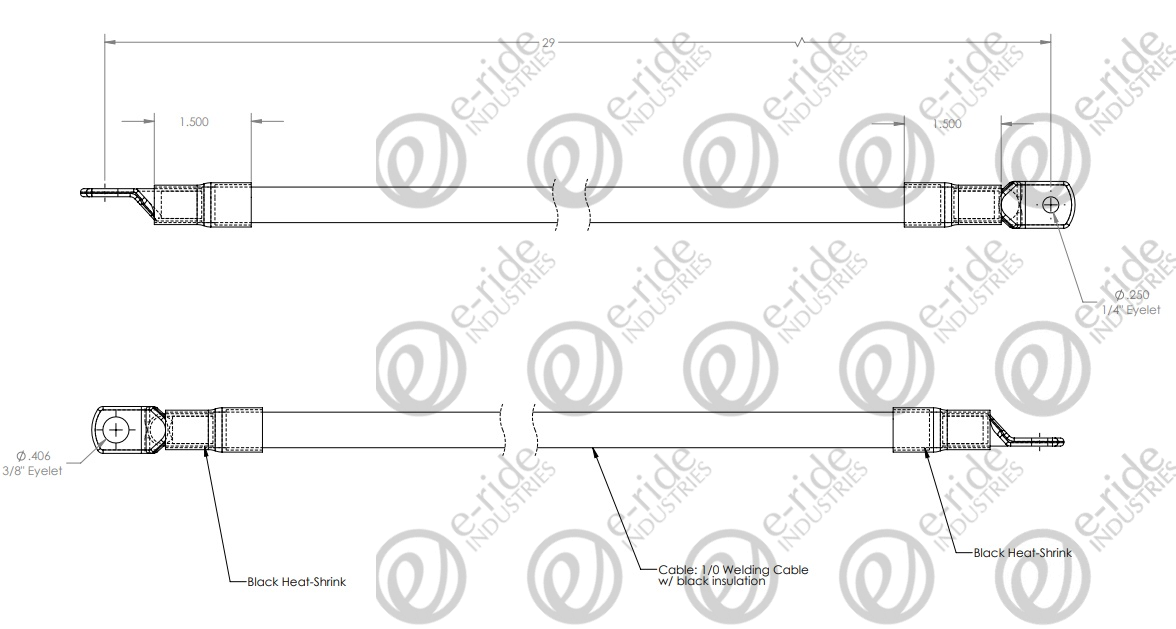

16
BATTERY CABLE

BATTERY CABLE

Part Number: U5009A-OO

1/o B- to Disconnect, Lithium 29in with 3/8in ring Cable

$  48.57

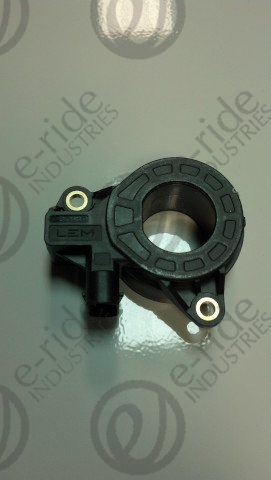

17
CURRENT SENSOR

CURRENT SENSOR

Part Number: U5679A-N

800A DUAL RANGE CURRENT SENSOR FOR BMS2

$  110.00

18
BATT. MANAGEMENT SYSTEM

BATT. MANAGEMENT SYSTEM

Part Number: U5680A-N

LITHIUM ION BATTERY MANAGEMENT SYSTEM 24 CELL VERSION BMS2 (VIN# REQUIRED FOR PROGRAMMING)

$  952.00
