REAR BUMPER TUBE
Part Breakdown Image

Fig #

1
1/2-13 X 1 1/4in CARRIAGE

1/2-13 X 1 1/4in CARRIAGE

Part Number: U8683A-N

1/2-13 X 1 1/4in CARRIAGE

$  1.76

2
NUT

NUT

Part Number: U8504A-N

1/2-13 SERRATED FLANGE HEX NUT

$  1.20

3
BUMPER CAPS

BUMPER CAPS

Part Number: U6250A-N

BUMPER CAPS

$  1.17

4

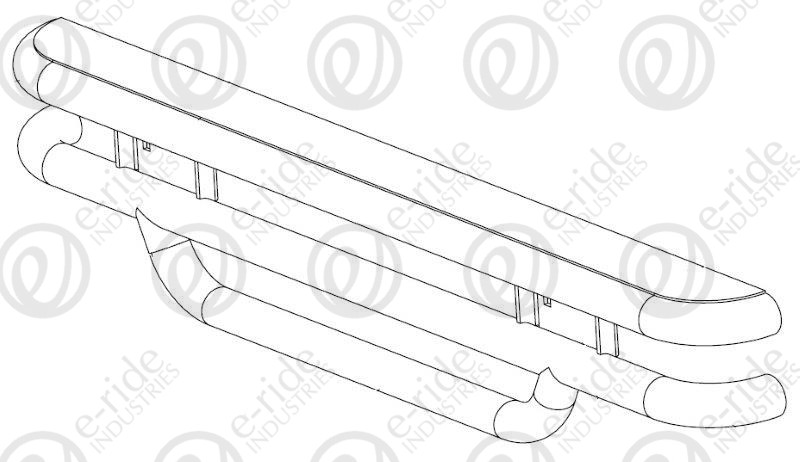

REAR TUBE BUMPER

REAR TUBE BUMPER

Part Number: U7005A-B

REAR TUBE BUMPER

$  224.59

5

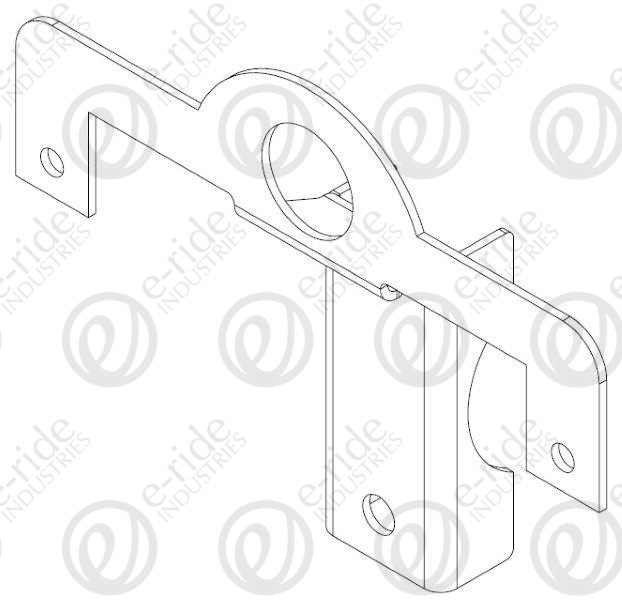

REAR LICENSE PLATE BRACKET

REAR LICENSE PLATE BRACKET

Part Number: U2338A-A

REAR LICENSE PLATE BRACKET TUBE BUMPER

$  14.72

6
LICENSE PLATE LIGHT

LICENSE PLATE LIGHT

Part Number: U2348A-N

LICENSE PLATE LIGHT

$  15.12

7
3/8 -16 X 2.5 U-BOLT

3/8 -16 X 2.5 U-BOLT

Part Number: U2848A-N

3/8 -16 X 2.5 U-BOLT (CHICAGO #022)

$  5.00

8
3/8-16 HEX NUT

3/8-16 HEX NUT

Part Number: U8587A-N

3/8-16 HEX NUT

$  0.32

10
CONNECTOR

CONNECTOR

Part Number: U5830A-N

MALE 2 PIN CONNECTOR MOLEX MLX 2.13MM

$  0.88

10-2
TERMINAL MALE MOLEX MLX

TERMINAL MALE MOLEX MLX

Part Number: U5842A-N

TERMINAL MALE MOLEX MLX

$  0.32

11
GROMMET

GROMMET

Part Number: U2831A-N

RUBBER GROMMET PANEL HOLE SIZE 9/16 BORE DIAMETER 5/16

$  1.84
