FOLDING BED SIDE
Part Breakdown Image

Fig #

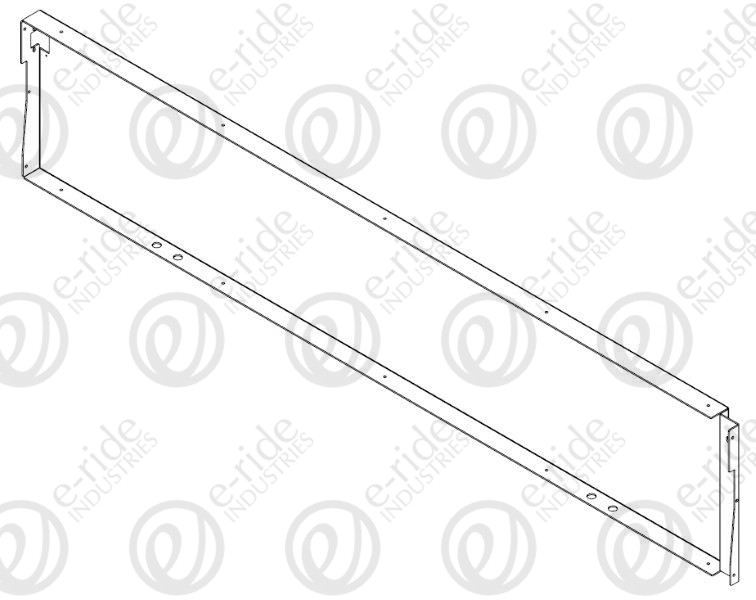

1L
FOLD SIDE INNER PANEL L

FOLD SIDE INNER PANEL L

Part Number: F2920L-OO-WHT

FOLDING BED SIDE INNER PANEL LEFT - WHITE PC

$  121.90

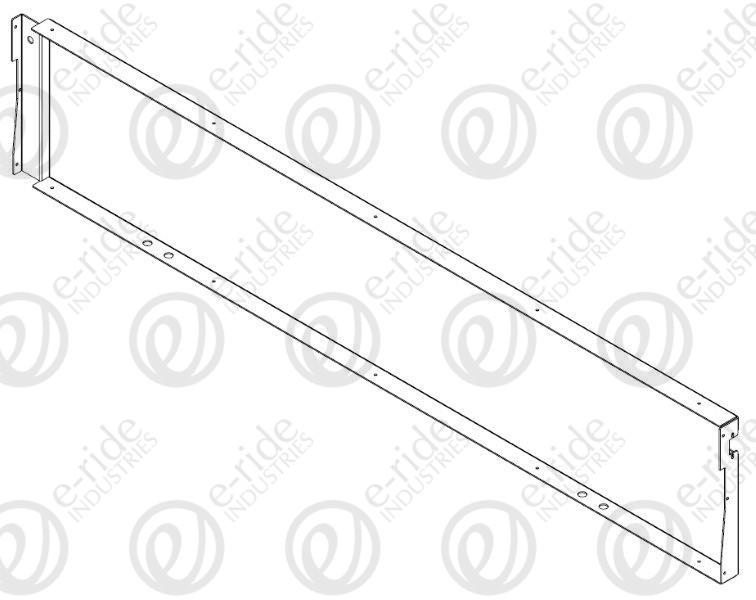

1R
FOLD SIDE INNER PANEL R

FOLD SIDE INNER PANEL R

Part Number: F2920R-OO-WHT

FOLDING BED SIDE INNER PANEL RIGHT - WHITE PC

$  121.90

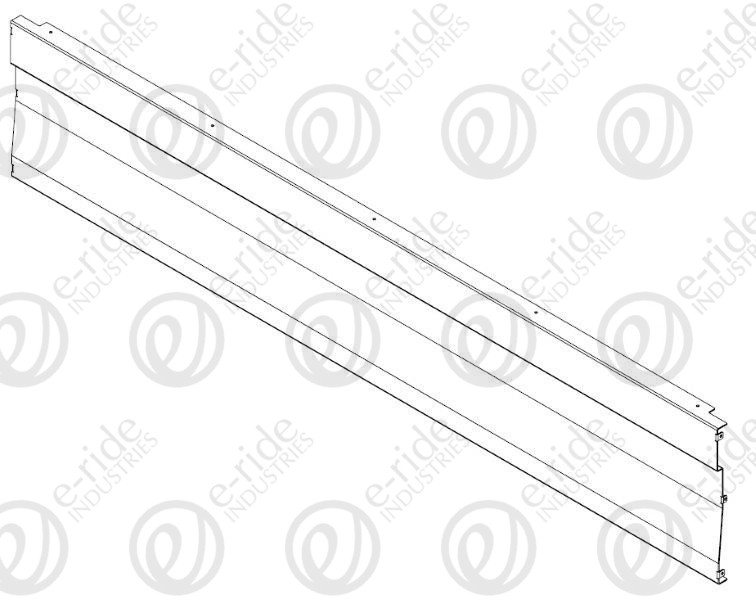

2
FOLD SIDE OUTER PANEL

FOLD SIDE OUTER PANEL

Part Number: F2921A-OO-WHT

FOLDING BED SIDE OUTER PANEL - WHITE PC

$  153.04

3
RIVET

RIVET

Part Number: U8600A-N

MULTI-GRIP RIVET -STEEL STRUC. [.062-.437]

$  1.36

4
RIVET

RIVET

Part Number: U8575A-N

1/4-20 [.027-.165] RIVET NUT

$  1.44

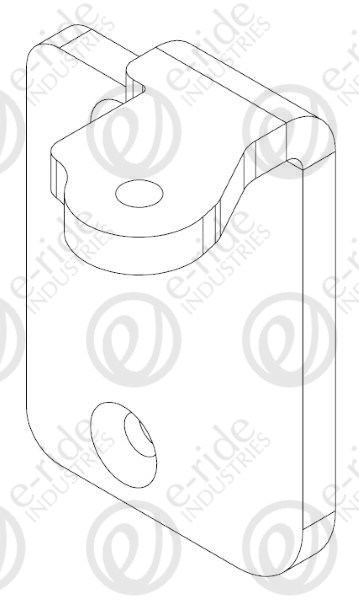

5
FOLDING BED SIDE HINGE TOP

FOLDING BED SIDE HINGE TOP

Part Number: F2918A-OO-BLK

FOLDING BED SIDE HINGE TOP

$  22.76

6
1/4-20 X 1in PHIL FLATHEAD

1/4-20 X 1in PHIL FLATHEAD

Part Number: U8531A-N

1/4-20 X 1in PHIL FLATHEAD

$  0.40

7
WASHER

WASHER

Part Number: U2862A-N

1/4 USS GRADE 8 FLAT WASHER

$  0.48

8
DOOR STRIKER LATCH POST

DOOR STRIKER LATCH POST

Part Number: U2861A-A-BLK

DOOR STRIKER LATCH POST

$  3.93

9
RIVET

RIVET

Part Number: U8619A-N

5/16-18 [.027-.150] RIVET NUT

$  1.40

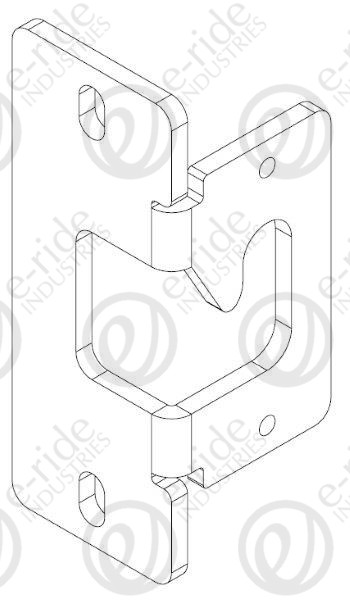

10L
FOLD BED STRIKE PLATE - L

FOLD BED STRIKE PLATE - L

Part Number: F2919L-A-BLK

FOLDING BED SIDE STRIKE PLATE - LEFT

$  22.29

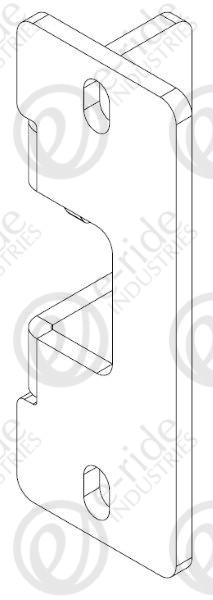

10R
FOLD BED STRIKE PLATE - R

FOLD BED STRIKE PLATE - R

Part Number: F2919R-A-BLK

FOLDING BED SIDE STRIKE PLATE - RIGHT

$  22.29

11
SELF DRILLING PHIL PAN

SELF DRILLING PHIL PAN

Part Number: U8641A-N

8-18 X 1/2in SELF DRILLING PHIL PAN

$  0.16
